About This

• ❤ FLOW RATE: The AG200-306’s maximum flow rate is 9.8 gallons per minute (GPM). The maximum flow rate through this air gap is the highest flow rate above which the air gap will overflow. At maximum flow rate, the air gap is dry on the outside.

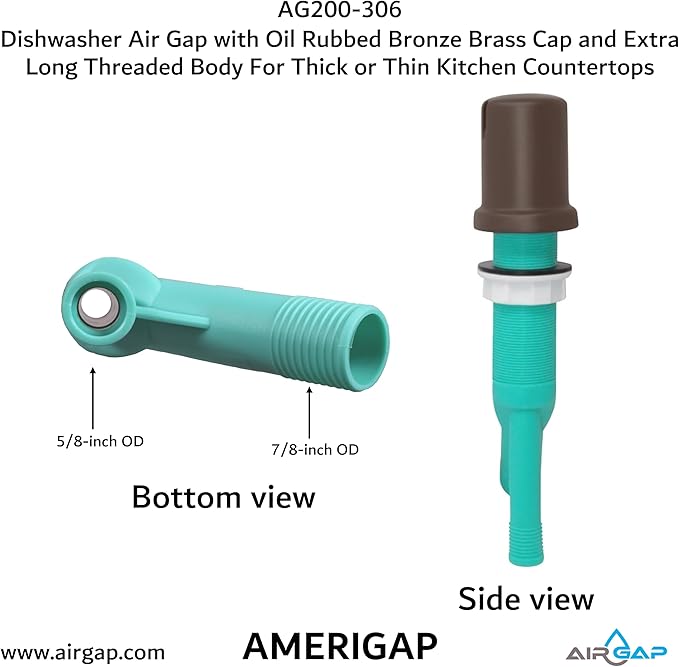

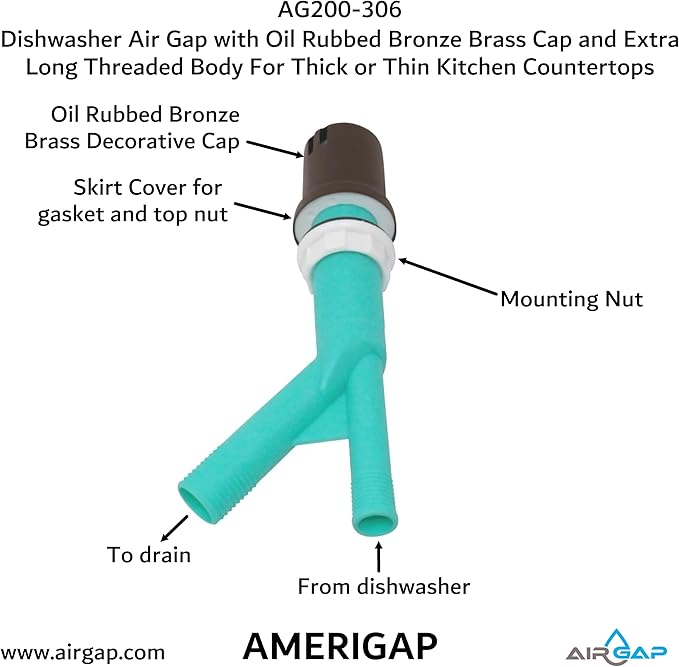

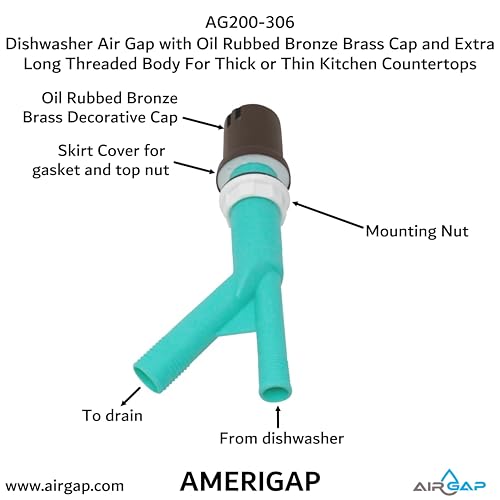

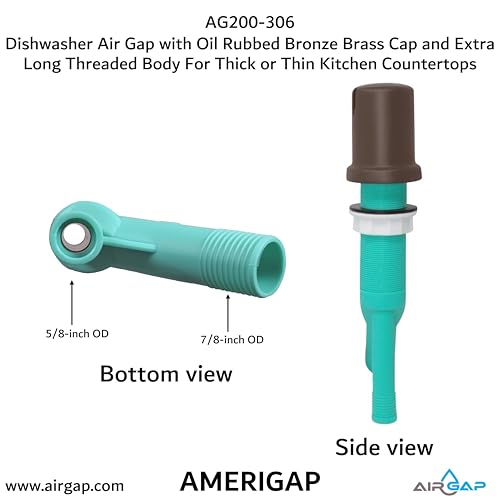

• ❤ INLET PORTS: The AG200-306 accepts standard 5/8-inch inside diameter hose from a dishwasher. The hose from dishwasher slides onto the bottom port and is secured using stainless worm clamps (not included). Make sure there are no kinks in the hose and that water passes freely.

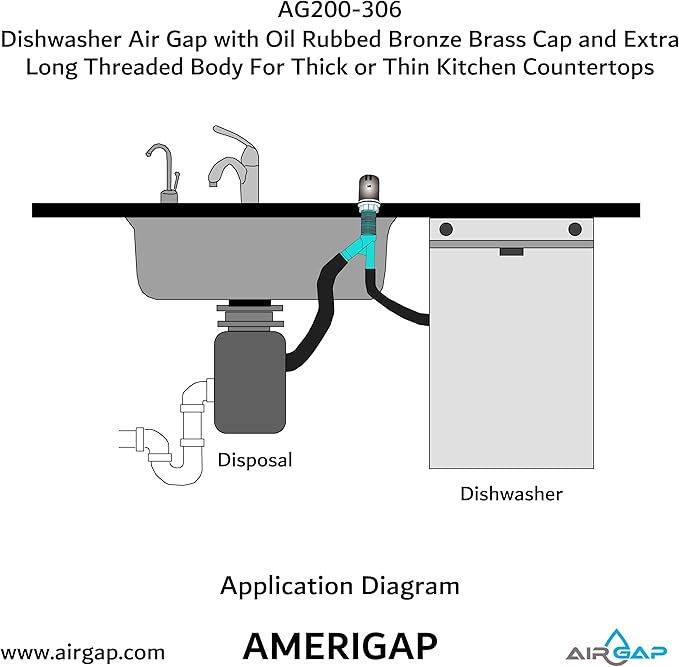

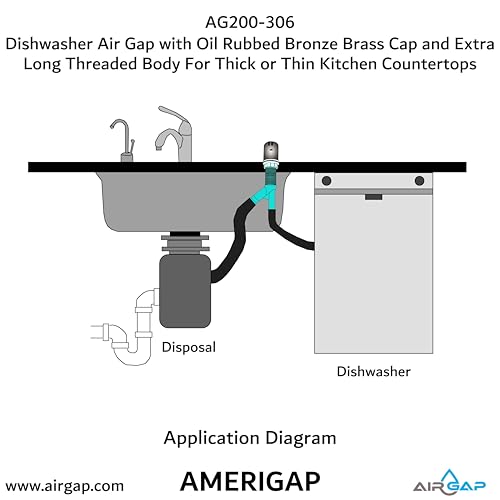

• ❤ OUTLET PORTS: The drainage side of the air gap connects to a 7/8-inch inside diameter hose, which routes discharge water to the side drain connection on the garbage disposal. This hose is available from Home Depot (search for “PVC Disposal Discharge Hose”). When installing this hose, make sure that there is no sagging or loops. Any sagging will create standing water and will restrict the proper draining of the air gap. Secure both ends of the hose with a 1-inch stainless steel hose clamp.

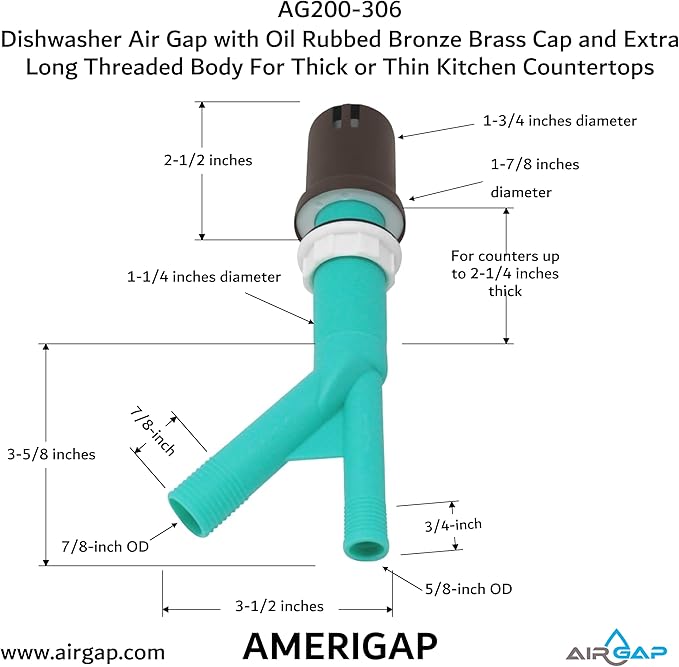

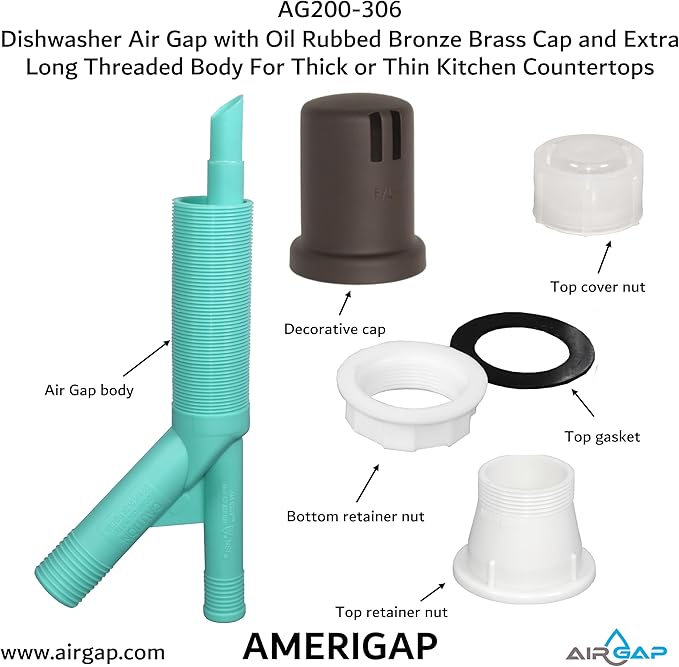

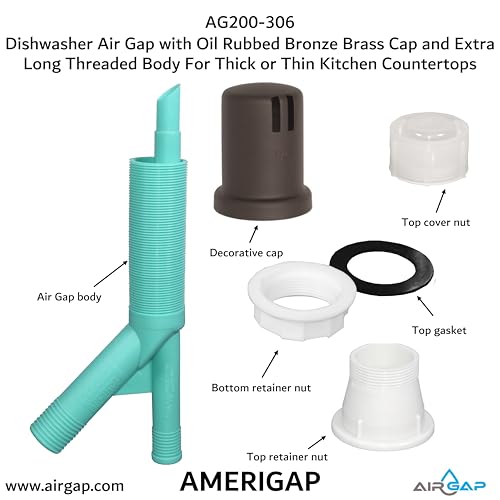

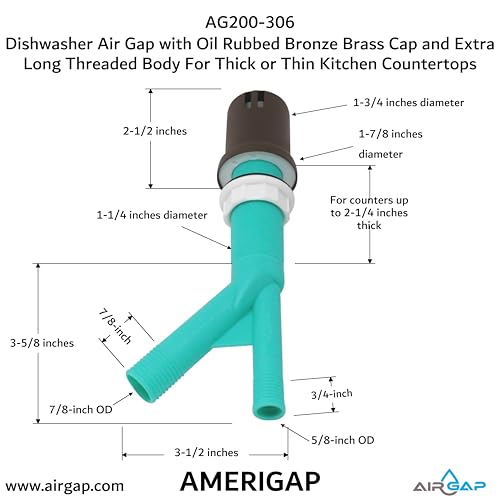

• ❤ THREADED BODY: The AG200-306 has a body with a thread that enables air gap mounting through a standard countertop. Countertop thickness can be up to 2-1/4 inches, and it does not require any special modification to accommodate this air gap. The body of the air gap made from extra durable plastic to resists bending or deforming.

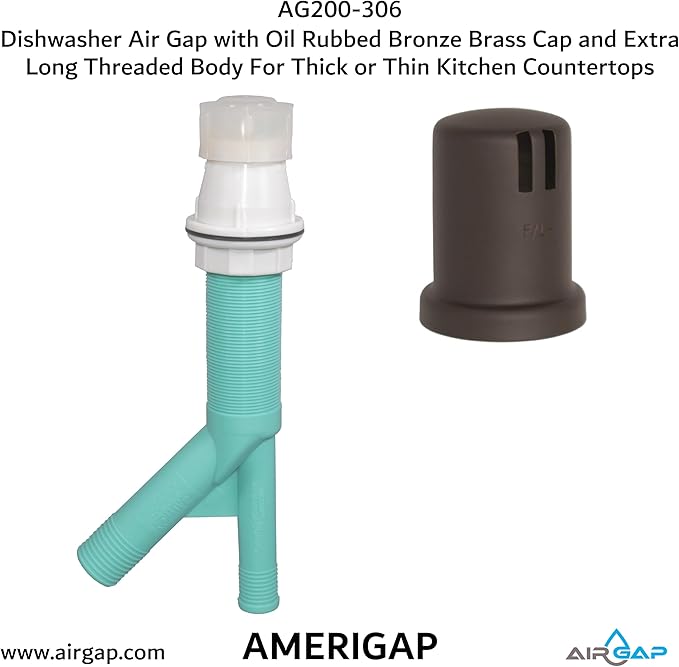

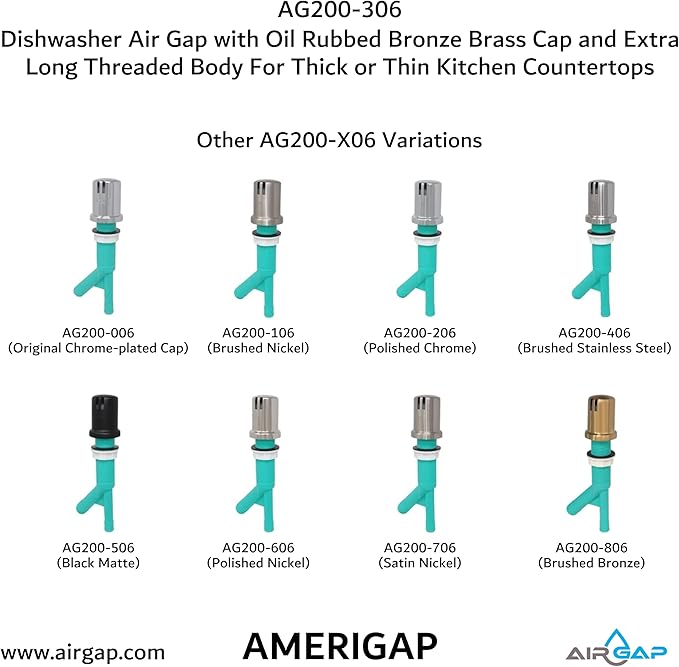

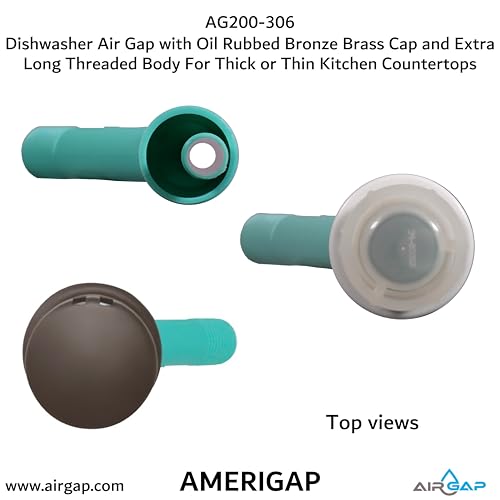

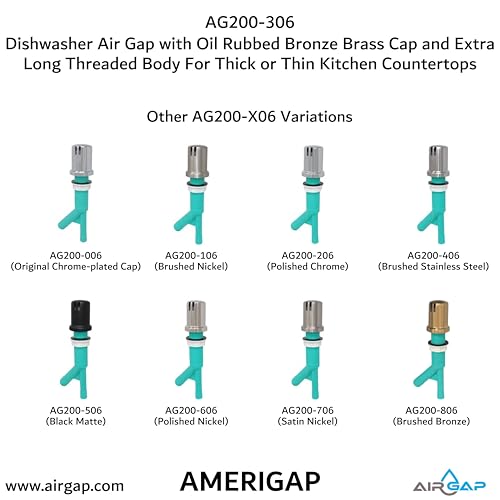

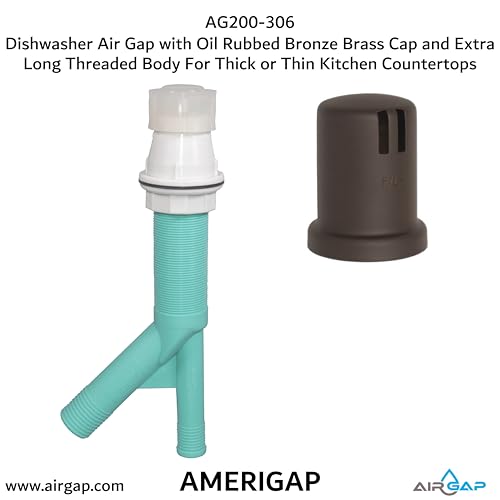

• ❤ DECORATIVE CAP: The AG200-306 comes with an oil rubbed bronze brass cap. The AG200-X06 offers a variety of decorative cap finishes designed to complement your kitchen sink faucet. Choose the air gap variation that best matches the color of your faucet.
